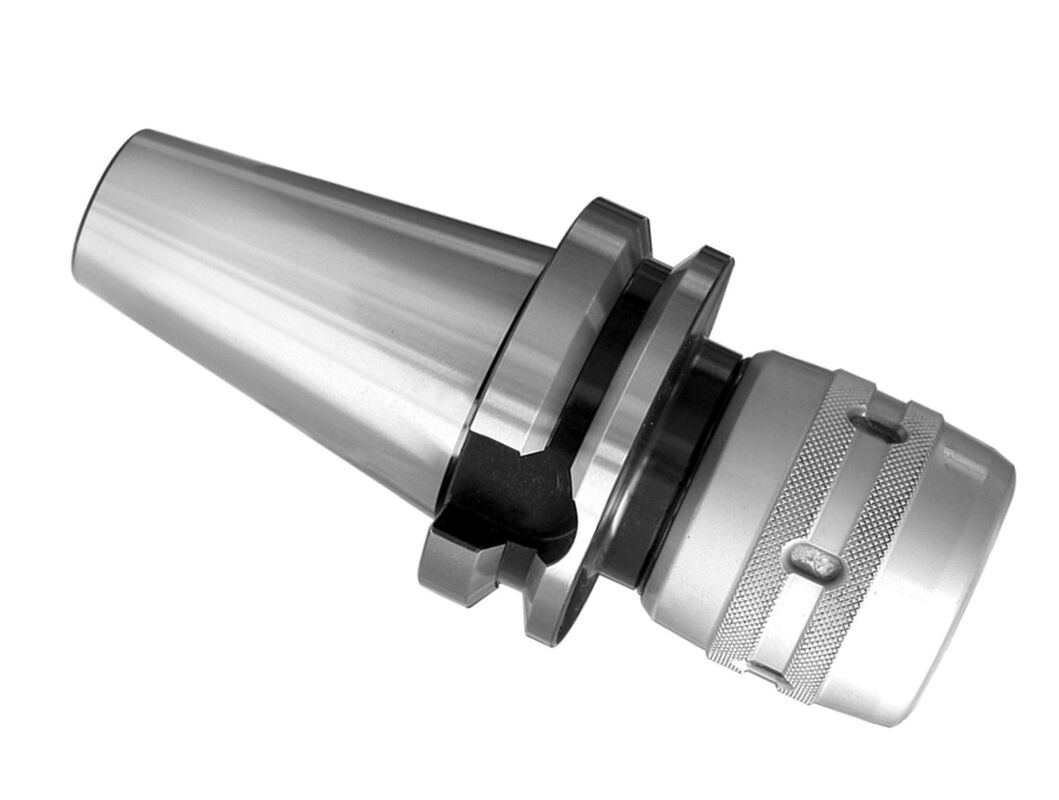

ZCCCT BT40-ZC20-160L High Precision ZC Spring Collet Tool Holder with 160mm Extended Length for Deep Mold Machining

The ZCCCT BT40-ZC20-160L is an extended-length high-precision ZC collet milling tool holder independently developed by ZCCCT (Zhuzhou Cemented Carbide Cutting Tools Co., Ltd.). It adopts standard JIS BT40 spindle taper interface, matched with ZC20 spring collet clamping system and 160mm extended projection length. Through strict quenching, tempering and black anti-rust surface treatment, this holder delivers ultra-low runout, high rigidity and strong clamping force. It is specially designed for deep cavity, deep slot and long-reach CNC machining scenarios, widely compatible with solid carbide end mills, drills and tapping tools for steel, alloy steel, stainless steel and cast iron processing.

Brand:

ZCCCT (Zhuzhou Cemented Carbide, Top Chinese cutting tool manufacturer)

Full Model:

BT40-ZC20-160L

Spindle Taper Standard:

BT40 (JIS B 6339 international CNC machine taper standard)

Collet Series:

ZC20 (Spring collet clamping range: Ø4mm ~ Ø20mm straight shank cutters)

Effective Projection Length:

160mm extra long neck design

Body Material:

High alloy structural steel, overall quenched to HRC 58~62

Surface Treatment:

Matte black anti-corrosion & wear-resistant oxidation coating

Runout Accuracy:

≤0.003mm at 4xD tool extension (high precision grade)

Balancing Standard:

Pre-balanced G2.5 at maximum 15,000 RPM

Coolant Compatibility:

External flood coolant compatible, optional internal coolant passage customization

Clamping Mechanism:

ZC slotted spring collet, uniform 360° clamping force, anti-slip tool design

• Carbon steel: 1018, 1045, A3 mild steel
• Alloy structural steel: 40Cr, 4140, pre-hardened mold steel
• Stainless steel: 304, 316, 420 stainless alloys
• Grey cast iron, ductile iron, aluminum alloy

• Deep mold cavity, deep narrow slot long-reach roughing & semi-finishing
• Vertical machining center deep contour profiling, long-distance side wall milling
• Automotive mold, plastic mold, die casting mold deep cavity processing
• Batch mechanical parts requiring extended tool reach to avoid holder collision
• Multi-axis CNC machining, high-precision hole drilling and tapping

• 160mm extended long neck: Solves interference problems in deep cavity machining, expands processing depth range without custom extension rods
• High hardness alloy steel substrate: Excellent bending rigidity, effectively suppress vibration during long overhang cutting, reduces tool chatter and surface burrs
• ZC20 spring collet system: Even circumferential clamping force, strong anti-slip performance, small radial runout to guarantee high surface finish
• Pre-balanced G2.5 grade: Stable performance under medium-high speed cutting, reduces spindle load and extends spindle service life
• Black anti-rust coating: Resists coolant corrosion, easy to clean, long service life under continuous wet cutting
• Unified BT40 industry standard, compatible with all mainstream BT40 vertical machining centers
