Name: Pramet CCMT120408-RK CVD Coated 80° Square Turning Insert with R0.8 Reinforced Cutting Corner for CNC Lathe
Brand: Beijing Ward Yitong Technology Co., Ltd.
SKU: CCMT120408-RK CCMT 432-RK T5025
Price: 6.00 USD
Availability: InStock

Home > Products > Carbide Cutting Tools >

Pramet CCMT120408-RK CVD Coated 80° Square Turning Insert with R0.8 Reinforced Cutting Corner for CNC Lathe

Pramet CCMT120408-RK carbide turning insert

CVD coated square turning insert

R0.8 reinforced cutting corner insert

Brand Name:

PRAMET

Model Number:

CCMT120408-RK CCMT 432-RK T5025

Chat Now

Request A Quote

Product Details

Shank Type:

Straight Shank

Diameter Range:

1-20mm

Hand Of Cut:

Right-Hand (RK)

Operating Temperature:

Up To 800°C

Heat Resistance:

Up To 1000°C

Insert Shape:

80° Square

Highlight:

Pramet CCMT120408-RK carbide turning insert

CVD coated square turning insert

R0.8 reinforced cutting corner insert

Payment & Shipping Terms

Minimum Order Quantity

100

Price

2-10usd/pcs

Packaging Details

Carton with Bubble paper which is suitable for long-distance transport

Delivery Time

4weeks

Payment Terms

T/T

Pramet VNMG160408E-SF T8415 35° Rhombic PVD Coated Turning Insert for Precision Finishing on Stainless Steel & Alloy CNC Lathe

Chat Now

Pramet CNMG190612E-SM T9415 Thick MT-CVD Coated 80° Rhombic Turning Insert R1.2 CNMG643-SM For Medium Rough & Semi-Finish Alloy Forged Steel CNC Lathe Machining CNC Tools

Chat Now

Pramet CNMM190624E-NR2 T9325 MT-CVD Coated 80° Rhombic Heavy Turning Insert R2.4 CNMM646-NR2 For Forged Steel Heavy Rough Interrupted CNC Lathe Machining CNC tool

Chat Now

Pramet CNMG120408-RP T5010 MT-CVD Coated 80° Rhombic Negative Turning Insert R0.8 CNMG432-RP For Carbon Alloy Steel Heavy Rough & Semi-Finish CNC Lathe Machining CNC Tools

Chat Now

86--18953223944

trek_tools1@qq.com

Chat Now

Product Description

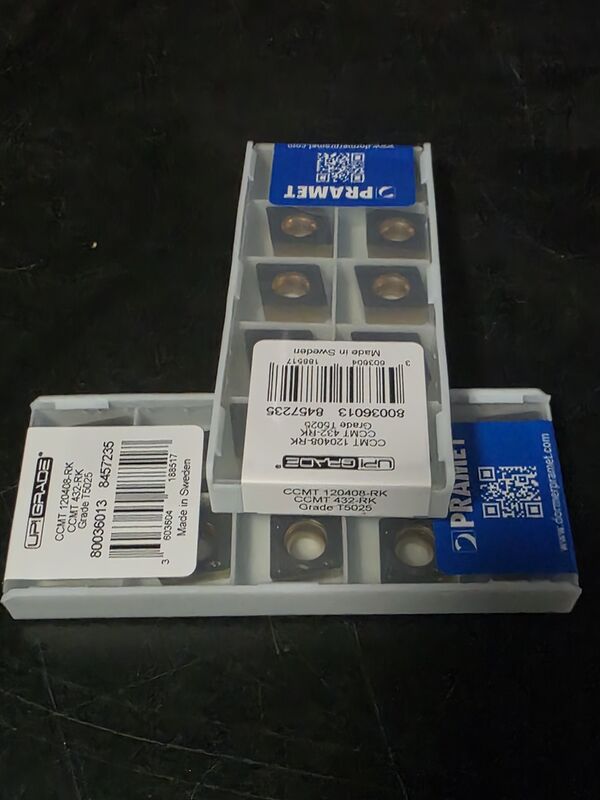

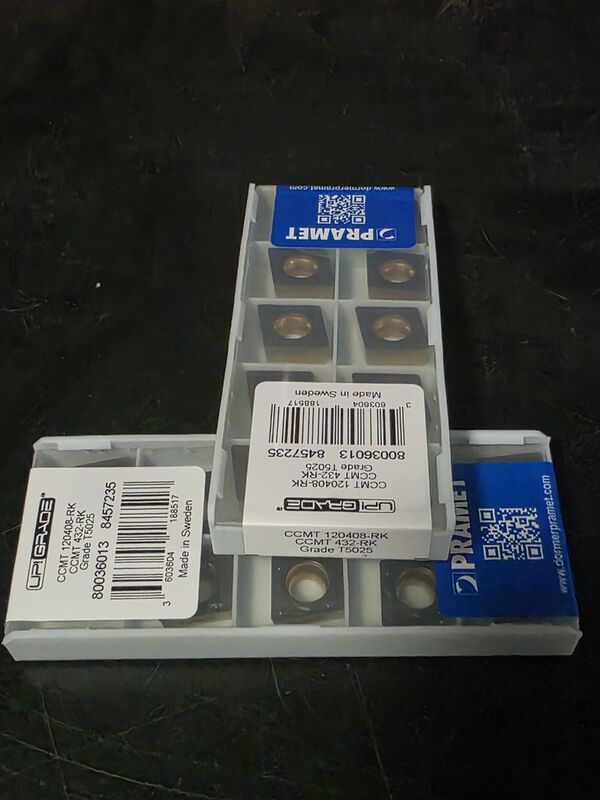

Pramet CCMT120408-RK CVD Coated 80° Square Turning Insert with R0.8 Reinforced Cutting Corner for CNC Lathe 0

Product Overview

CCMT120408-RK (short code CCMT432-RK) T5025 is a positive square single-sided turning insert launched by Pramet. It adopts RK universal medium rough chipbreaker and T5025 steel-special CVD coating substrate, equipped with R0.8 reinforced cutting corner. It supports external turning, inner hole boring and end face machining, perfectly matching SCLCR series tool holders. Balanced cutting performance adapts to continuous and minor interrupted turning of various steel materials, widely used on CNC lathes for automotive, hydraulic, mold and general machinery mass precision metal processing.

Key Features

Positive rake angle design, reduces cutting resistance, effectively lowers workpiece cutting deformation
RK optimized medium rough chipbreaker, divides long steel chips into short fragments to avoid chip winding
T5025 three-layer composite CVD coating, high temperature oxidation resistance, greatly reduce flank wear
Ultra-fine grain carbide base, strong impact resistance, not easy to collapse edge during slight interrupted cutting
Dual standard model marks (metric CCMT120408 / inch shortcut CCMT432), convenient for global customer order inquiry
Precise positioning hole structure, high repeat positioning accuracy after insert replacement, stable machining dimensional tolerance
Multi-scene applicability, covers outer circle turning, inner hole boring and end face finishing operations

Technical Specifications

Property	Value
Full Metric Model	CCMT120408-RK T5025
Short Code Model	CCMT432-RK T5025
Brand	Pramet
Insert Shape	80° Square
Rake Angle	Positive Rake
Inscribed Circle	12.7mm
Insert Thickness	4.76mm
Cutting Corner Radius	R0.8mm
Chipbreaker Type	RK Medium Rough Universal
Coating Type	Multi-layer TiCN-Al₂O₃-TiN CVD Coating
Material Grade	T5025 General Steel Carbide
Matching Tool Holder	SCLCR12 / SCLCL12 Internal & External Turning Bar
Compatible Equipment	CNC lathe, horizontal automatic lathe, economical turning machine

Applicable Workpiece Materials

Mild carbon steel
45# steel
alloy structural steel
pre-hardened mold steel
forged steel

Typical Applications

Machining Processes

Outer circle rough & semi-finish turning
internal hole boring
end face facing
slight interrupted forging turning

Industrial Workpieces

Automotive industry: transmission shaft, brake fitting, engine structural parts batch turning
Hydraulic industry: valve body inner hole boring, pipeline joint outer circle precision processing
Mold manufacturing: mold base positioning shaft, mold accessory steel parts semi-finishing
General machinery: gear blank, bushing, positioning block continuous mass turning production
