Original Korea TaeguTec SCMT120408PC TT9080 Golden PVD Coated Turning Insert for Medium Finishing with 0.8mm Nose Radius

Product Overview
The TaeguTec SCMT120408PC TT9080 is an original Korean positive square indexable turning insert under TaeguTec’s SCMT series, matched with versatile TT9080 PVD coating grade. It features PC medium-finish chipbreaker geometry, 7° positive back relief angle and 0.8mm nose radius, adopting single-sided 4 usable cutting edges. Equipped with TiAlN-TiN composite golden PVD coating, this insert balances low cutting resistance, anti-built-up edge and wear resistance, specialized for medium turning & finishing of carbon steel, alloy steel, austenitic stainless steel and low-hardness heat-resistant alloys. It fits standard SCLCR/SCLCN/SCMCN square tool holders for external turning, internal boring and facing operations on CNC lathes, widely used in auto parts, hydraulic fittings and general precision metal mass production.

• Brand: TaeguTec (Korea top professional cutting tool manufacturer, member of IMC Group)
• Full Official ISO Model Code: SCMT120408PC TT9080
• Insert Shape: Square positive rake insert, single-sided with 4 usable cutting corners
• Inscribed Circle IC: 12.7 mm (1/2")
• Insert Thickness S: 4.76 mm (T4 specification)
• Corner Nose Radius RE: 0.8 mm
• Back Relief Angle AN: 7° positive relief for low cutting force
• Chipbreaker Type: PC medium finish chipbreaker, feed range 0.08–0.25 mm/rev
• Coating Grade: TT9080 multi-layer TiAlN-TiN PVD golden coating
• ISO Application Range: P20-P40 carbon/alloy steel, M20-M40 stainless steel, S20-S40 heat-resistant alloy
• Substrate: Fine grain tough tungsten carbide substrate, anti-chipping for slight interrupted cutting
• Compatible Tool Holders: SCMCN12, SCLCR12, SCLCN12 series square turning tool bars

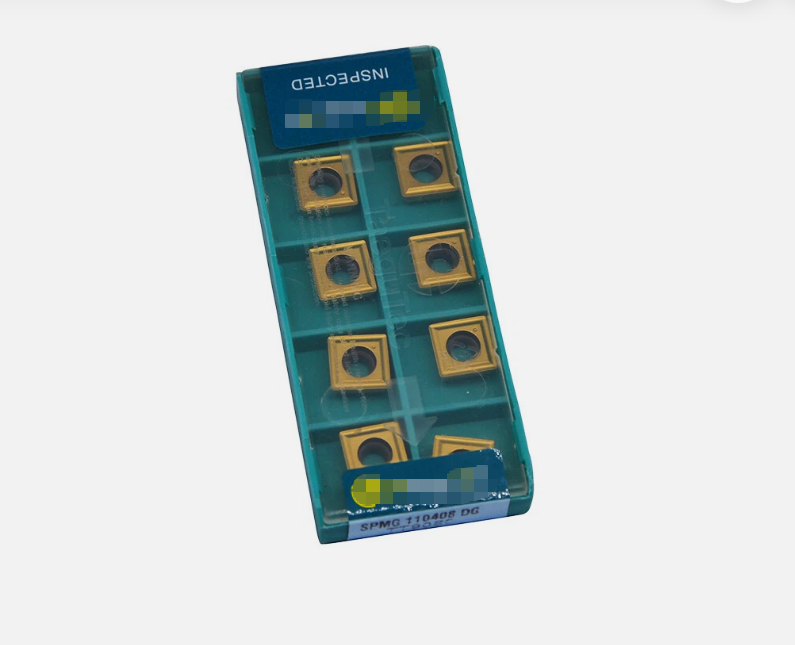

• Standard Packing: 10 pieces per original TaeguTec sealed plastic compartment box
• Origin: Made in Korea

• Carbon & alloy structural steel: S45C, 4140, 40Cr, P20 pre-hardened mold steel
• Austenitic & martensitic stainless steel: SUS304, SUS316, 420 stainless
• Heat-resistant nickel-based alloy, titanium alloy
• Grey cast iron, ductile iron for secondary universal machining

• Medium turning and precision finishing of stainless steel auto shafts, hydraulic pipe joints and valve bodies
• Internal boring, external OD turning and end facing for small & medium precision components on CNC lathes
• Continuous stable cutting of sticky work-hardening stainless steel without frequent built-up edge
• General mass production mixed with steel and stainless steel workpieces to reduce tool stock varieties
• Slight interrupted cutting with keyways, steps and uneven machining allowance, requiring balanced toughness and wear resistance
• Medical stainless steel fittings and general mechanical component high-volume automated turning

• TT9080 dedicated PVD coating: Optimized for stainless steel & steel machining, effectively suppress workpiece work-hardening and chip adhesion, extends tool life by over 40% vs ordinary coated inserts
• 7° positive rake + PC chipbreaker design: Greatly reduces cutting load and vibration, generates short curled chips for smooth chip evacuation during boring and external turning
• Single-sided 4-edge square structure: Maximizes cutting edge utilization rate, lowers long-term tool procurement cost for mass factories
• Fine grain carbide substrate with enhanced edge toughness: Resists edge chipping under intermittent cutting conditions, stable performance for long-hour continuous production
• Standard universal 12mm IC dimension: Fully interchangeable with global SCMCN/SCLCR12 series turning holders, easy unified inventory management for foreign trade clients
• Original Korean TaeguTec strict double inspection: Consistent dimensional tolerance and coating uniformity, stable surface finish for high-precision parts
