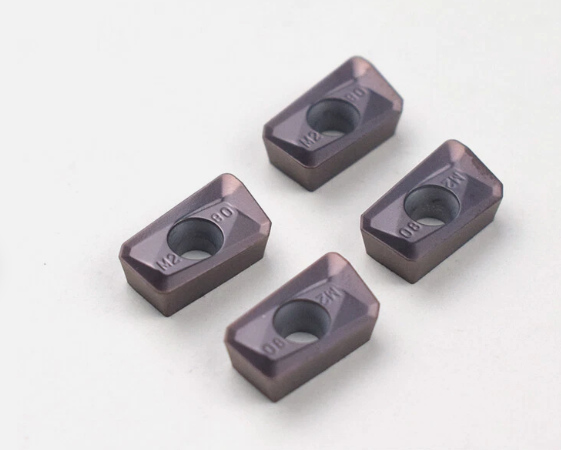

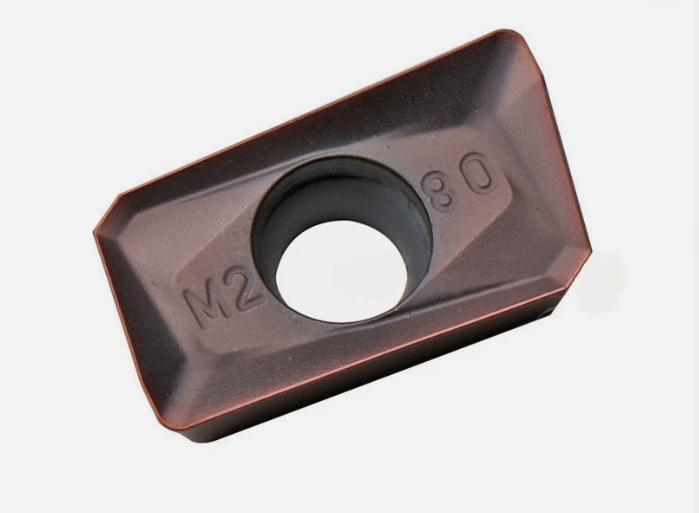

Mitsubishi DIAEDGE APMT1135PDER-M2 VP15TF Universal Milling Insert with Double-sided 4 Edges VP15TF Coating M2 Chipbreaker

The MITSUBISHI APMT1135PDER-M2 VP15TF is a double-sided multi-edge indexable square shoulder milling insert under Mitsubishi DIAEDGE APM series, manufactured by Mitsubishi Materials Japan. It features M2 medium-rough chipbreaker, 85° cutting edge angle, 11° positive relief angle and R0.8 nose radius, matched with universal RPMT/APMT series square shoulder milling cutter bodies. Equipped with versatile VP15TF multi-layer PVD composite coating, this insert balances wear resistance and impact toughness, capable of processing carbon steel, alloy steel, stainless steel, cast iron and low-hardness hardened steel below HRC40. It is widely adopted for face milling, square shoulder side milling, slotting and contour semi-finishing on CNC machining centers for mold, auto parts and hydraulic fitting mass production.

• Brand: MITSUBISHI MATERIALS (Japan professional cemented carbide cutting tool brand, DIAEDGE series)
• Full Official Model Code: APMT1135PDER-M2 VP15TF
• Insert Type: Double-sided positive rake square shoulder milling insert
• Cutting Edge Count: 4 usable edges (double-sided 2 edges each side)
• Effective Cutting Edge Length (LE): 9 mm
• Insert Width (INSL): 11.18 mm
• Insert Thickness (S): 3.5 mm
• Corner Radius (RE): 0.8 mm
• Main Cutting Edge Angle (EPSR): 85°
• Back Relief Angle (AN): 11° positive relief
• Chipbreaker Grade: M2 universal medium rough chipbreaker (balanced chip control for rough & semi-finish)
• Coating Grade: VP15TF multi-purpose PVD nano composite coating (golden surface finish)
• Substrate Characteristic: Tough ultra-fine grain carbide substrate, anti-chipping for interrupted cutting
• Hand Direction: Right-hand standard geometry
• Compatible Milling Cutter Bodies: MITSUBISHI APM11 series shoulder milling end mills, general APMT compatible cutter heads

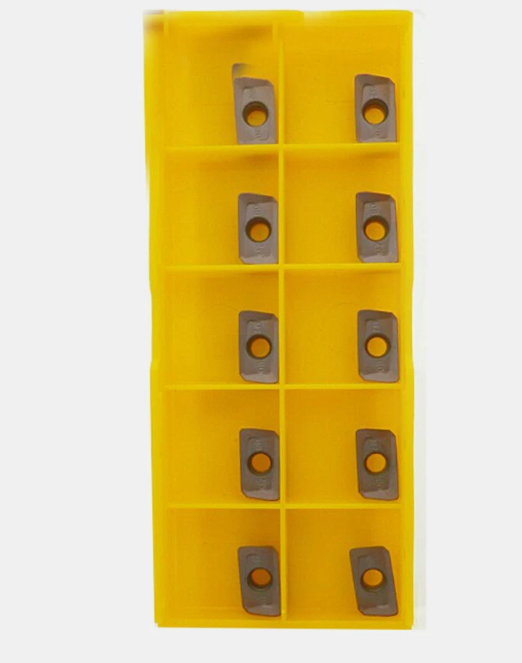

• Standard Packing Specification: 10 pieces per original Mitsubishi sealed plastic compartment box
• Origin: Made in Japan

• Carbon steel: 1018, 45#, S45C, Q235 mild steel
• Alloy structural steel: 40Cr, 4140, P20, 718H pre-hardened mold steel
• Stainless steel: SUS304, SUS316, duplex stainless steel
• Grey cast iron, ductile iron, aluminum alloy
• Low-hardness quenched steel below HRC40

• High-efficiency square shoulder side roughing & semi-finishing for plastic die, die-cast mold bases
• Face milling, step surface machining of automotive structural parts and engine fittings
• Shallow slotting, 2D contour profiling on hydraulic valve blocks and mechanical general components
• Mass batch automated production with mixed steel & stainless steel workpiece switching
• Interrupted cutting with intermittent feed, requiring balanced anti-chipping and wear resistance
• Universal general milling operations for job shops with multi-material processing demands

• VP15TF all-purpose PVD coating: Universal grade covering steel, stainless steel and cast iron, excellent anti-built-up-edge performance to avoid chip adhesion on cutting edges, stable service life for mixed-material production
• M2 optimized medium rough chipbreaker geometry: Smooth chip curling and evacuation, prevents long strip chips from tangling around cutter body during heavy feed roughing
• Double-sided 4 usable cutting edges: Double service life compared with single-sided inserts, effectively lowers long-term tool procurement cost
• Tough ultra-fine grain carbide substrate: Outstanding edge impact resistance, greatly reduces chipping risk during interrupted slotting and uneven allowance roughing
• 11° positive relief angle design: Low cutting resistance, reduces spindle load and machining vibration, improves workpiece surface finish quality
• Global standard APM11 size dimension: Fully interchangeable with all brand APMT11 series shoulder milling cutter bodies, convenient spare part stocking for foreign trade clients
