Product Overview

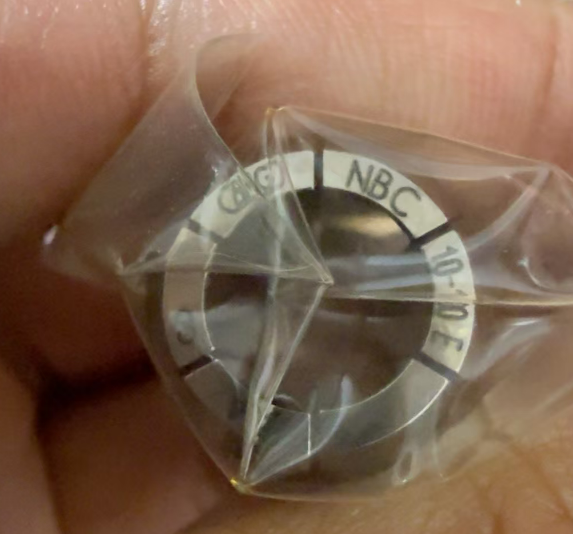

The BIG DAISHOWA NBC10-10EAA (short code NBC-10-10E) belongs to the premium NEW BABY (NBC) high-precision collet series developed by BIG DAISHOWA (Japan Daishowa Seiki). It is a fixed single-diameter end mill dedicated collet without clamping tolerance range, exclusively designed for clamping cutting tools with exactly Ø10mm straight shank. Made of anti-rust stainless steel with ultra-precision multi-stage grinding, this AA-grade collet guarantees ultra-low runout of 1μm at collet nose, perfectly matched with MEGA10N / NBS10 NEW BABY tool holders. It is the top choice for high-speed mold finishing, hard steel machining and precision component CNC processing, solving vibration, poor surface finish and fast tool wear problems caused by low-precision standard collets.

Key Features

• Brand: BIG DAISHOWA (Japan Daishowa Seiki, world-leading high-precision tool holder manufacturer)
• Full Model Code: NBC10-10EAA (abbreviated NBC-10-10E for commercial quotation)
• Series Name: NEW BABY (NBC) Ultra Precision Collet Series
• Collet Body Size Code: NBC10 (matches MEGA10N / NBS10 chuck body)
• Clamping Diameter: Fixed Ø10mm (E-type fixed diameter for end mills, no adjustable clamping range)

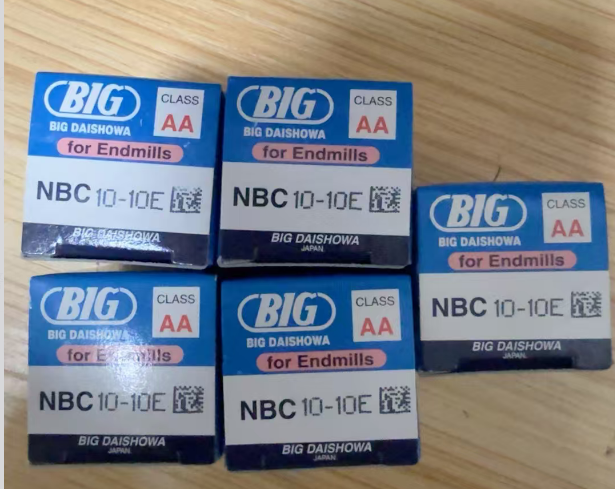

• Accuracy Grade: AA Top precision grade, double 100% inspection before factory delivery
• Guaranteed Runout Tolerance: ≤1μm at collet nose; ≤3μm at 4xD extension of test bar
• Raw Material: 440 series anti-corrosion stainless steel, anti-rust under long-term coolant wet cutting

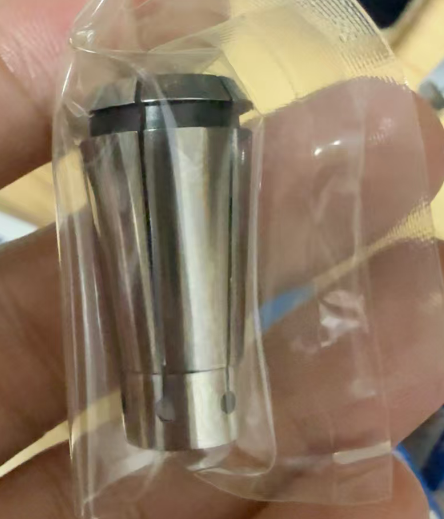

• Slit Structure: Multi-segment uniform elastic slits, 360° even clamping force without tool shank deformation
• Compatible Tool Holder: MEGA10N, NBS10 NEW BABY collet chucks
• Application Tool Type: Solid carbide end mills, ball nose cutters, bull nose cutters with standard Ø10 straight shank
• Max Applicable Spindle Speed: Up to 45,000 RPM high-speed machining
• Surface Treatment: Mirror precision grinding, smooth taper contact surface with chuck body

Technical Specifications

Applicable Workpiece Materials

• Pre-hardened mold steel: P20, 718H, NAK80 (HRC30–55)
• Fully quenched hardened steel: S136, STAVAX, Cr12MoV (HRC55–65)
• Stainless steel: 304, 316, duplex stainless alloy
• Aluminum alloy, copper alloy, graphite electrode
• Titanium alloy & nickel-based superalloys

Typical Applications

• High-speed ultra-precision finishing of injection molds, die casting molds and stamping molds
• CNC machining center 3D contour profiling, deep cavity fine milling with Ø10mm carbide cutters
• Precision automotive, aerospace miniature component high-tolerance machining
• Graphite electrode high-speed milling requiring mirror surface finish
• Long batch automated production with strict dimensional consistency requirements
• Hardened steel high-speed dry cutting, anti-vibration precision machining

Advantages of BIG DAISHOWA NBC10-10E Fixed Diameter Collet

• E-type fixed single diameter design: Only clamps exact Ø10mm shank cutters, eliminates clearance gap between collet and tool shank, achieves far higher rigidity than range-type AA collets, effectively suppress high-speed cutting vibration
• Industry-leading 1μm nose runout accuracy: Significantly improves workpiece surface roughness, extends carbide tool service life by 30%+ compared with ordinary ER collets
• Anti-rust 440 stainless steel substrate: Resists erosion of water-soluble coolant, no rust adhesion after long-term continuous wet machining, stable precision for long service cycle
• Uniform multi-slit elastic structure: Balanced circumferential clamping force, no indentation or damage on polished carbide tool shanks
• Double strict factory inspection process: Every AA-grade NBC collet undergoes two independent precision tests to eliminate defective products, consistent batch dimensional repeatability
• Perfect compatibility with BIG MEGA10N series chucks: Full concentricity matching, no secondary runout loss after assembly, supports ultra-high spindle speed machining up to 45,000 RPM
