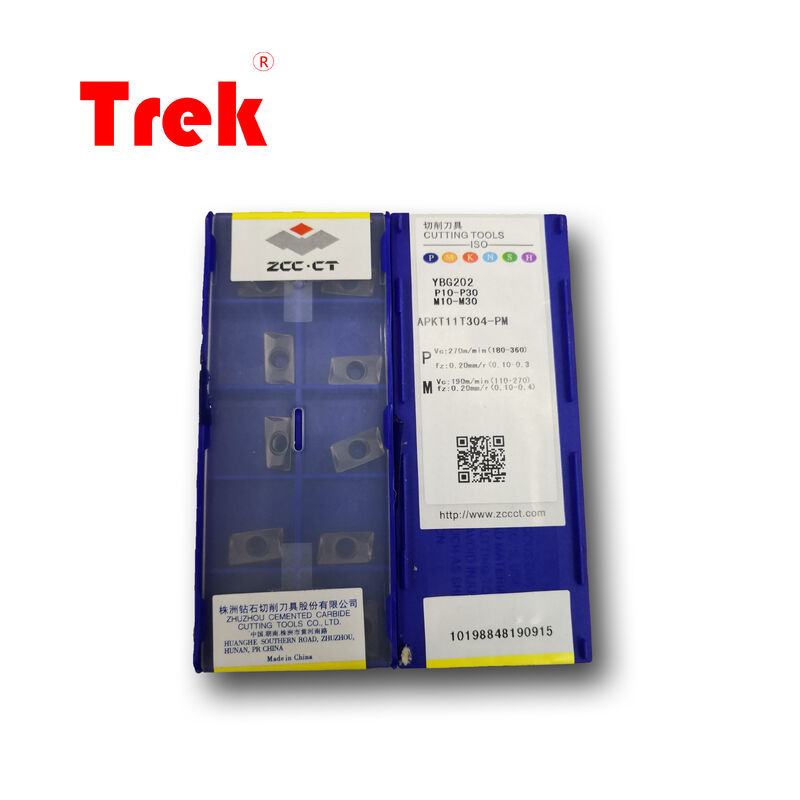

ZCCCT APKT11T304PM YBG202 Carbide Insert with PVD TiAlN Coating Positive Rake Design and Universal PM Chipbreaker for CNC Milling

The ZCCCT APKT11T304PM YBG202 is a multi-purpose positive rake square indexable carbide milling insert manufactured by ZCCCT (Zhuzhou Cemented Carbide Group Co., Ltd.). It is engineered for semi-roughing and semi-finishing milling operations on carbon steel, alloy steel and common stainless steel. Equipped with universal PM chipbreaker and YBG202 PVD coated grade, this insert delivers low cutting resistance, smooth chip evacuation and reliable wear resistance for general CNC machining.

• Brand: ZCCCT (Zhuzhou Cemented Carbide, China)
• Model: APKT11T304PM
• Grade: YBG202
• Insert Shape: Square positive rake milling insert
• Size Code: 11T304
  • Inscribed Circle (IC): 11 mm
  • Thickness: 3.97 mm
  • Corner Radius: 0.4 mm
• Chipbreaker: PM (Universal for semi-rough & semi-finish milling)
• Coating: PVD TiAlN coating
• Usable Cutting Edges: 2
• Rake Angle: Positive design to reduce cutting load

• Carbon steel (S45C, 1045, A3 steel)
• Alloy structural steel (40Cr, 4140)
• General stainless steel (304, 316L)
• Grey cast iron & ductile cast iron

• Face milling, side milling and contour profiling
• Semi-roughing and semi-finishing on CNC machining centers
• Machining automotive structural parts, mold bases and general mechanical components
• Optimal performance with coolant wet cutting

• YBG202 universal PVD coating balances substrate toughness and anti-wear capacity, compatible with multiple metal materials
• PM multi-purpose chipbreaker optimizes chip curling and prevents chip entanglement
• Positive rake structure lowers cutting force to protect machine tools and tool holders
• Stable machining consistency with cost-effective domestic cemented carbide
