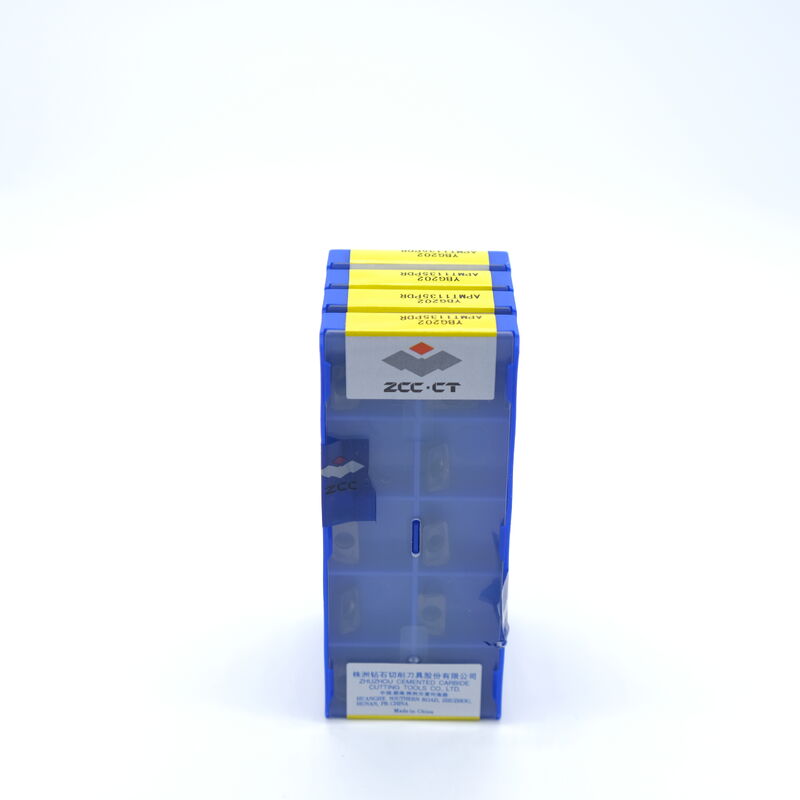

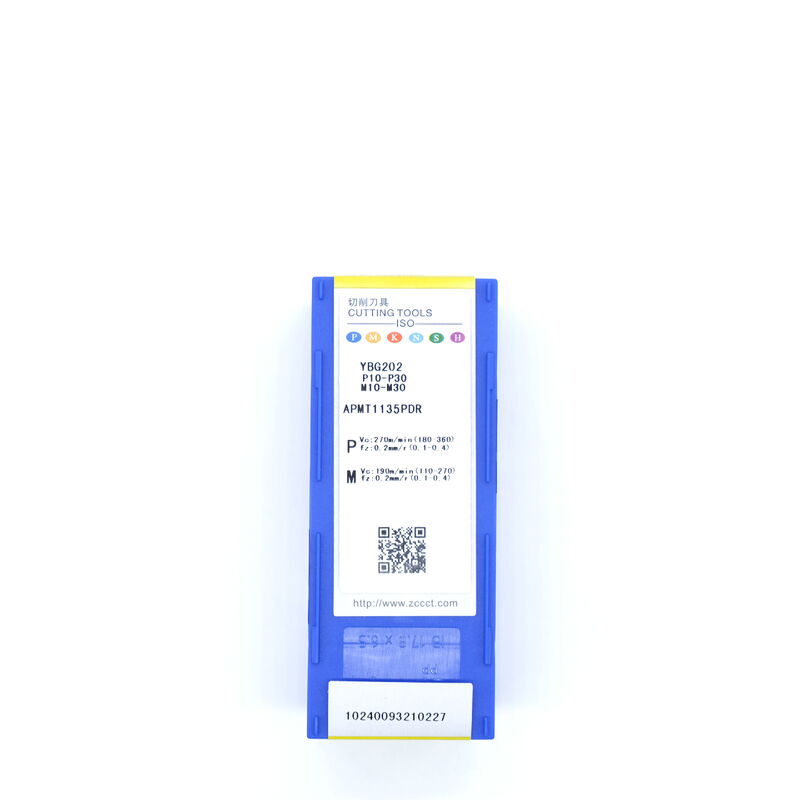

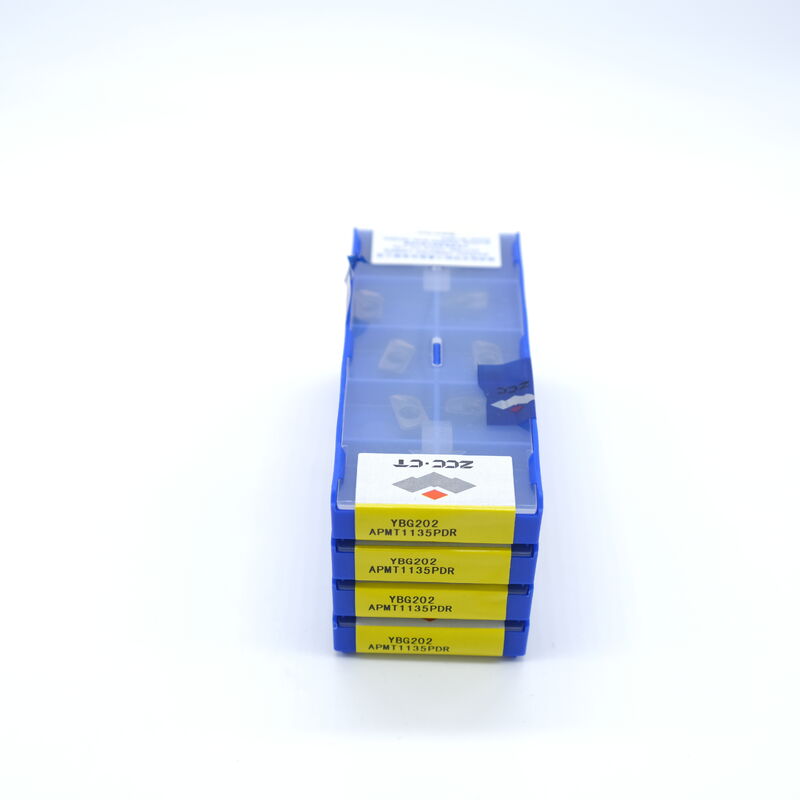

APMT1135PDR YBG202 ZCCCT Nano PVD Coated Carbide Milling Insert with PDR Chipbreaker for Light to Medium Milling

The ZCCCT APMT1135PDR YBG202 is a high-performance square indexable carbide milling insert from ZCC Cutting Tools (ZCCCT, Zhuzhou Diamond) – China’s leading manufacturer of precision cutting tools. Designed for light to medium milling of steels, stainless steels, cast irons, and high-temperature alloys, it features a PDR chipbreaker and premium YBG202 nano PVD coating for exceptional wear resistance and toughness in general-purpose CNC milling.

• Model: APMT1135PDR YBG202
• Brand: ZCCCT (Zhuzhou Diamond Cutting Tools, China)
• Geometry: APMT = Square, 11° relief angle, positive rake, with mounting hole
• Dimensions: 11 = length 11.25 mm; 35 = thickness 3.5 mm; PDR = chipbreaker, corner radius 0.8 mm
• Chipbreaker: PDR – optimized for light/medium milling, low cutting force, efficient chip evacuation
• Grade: YBG202 – nano PVD coated (nc-TiAlN) ultrafine-grained carbide, high strength & toughness
• Coating: Advanced nc-TiAlN nano PVD coating, excellent heat & wear resistance
• Edges: 2 usable cutting edges; rigid substrate resists deformation under moderate loads

• Carbon steels (P10–P30) – primary
• Stainless steels (M10–M30, 304/316)
• Alloy steels (4140, 42CrMo4, HRC < 48)
• Grey cast irons (K10–K25)
• High-temperature alloys (S05–S20, Inconel)

• Face milling & shoulder milling (light/medium)
• Slotting & ramping operations
• Profiling & contouring (continuous cuts)
• General-purpose CNC milling (mass production & job shops)
• Dry or wet machining (stable thermal performance)

Combines a versatile PDR milling geometry with ZCCCT’s advanced YBG202 nano PVD grade. Delivers long tool life, excellent surface finish, and reliable performance in light-to-medium milling across multiple materials. Ideal for shops seeking cost-effective, high-quality inserts for stainless steel and alloy machining.
