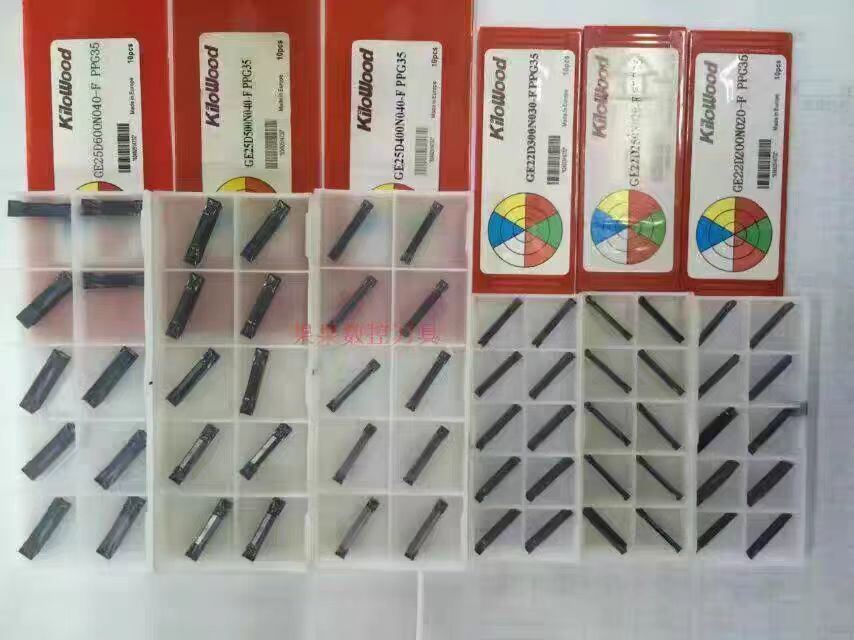

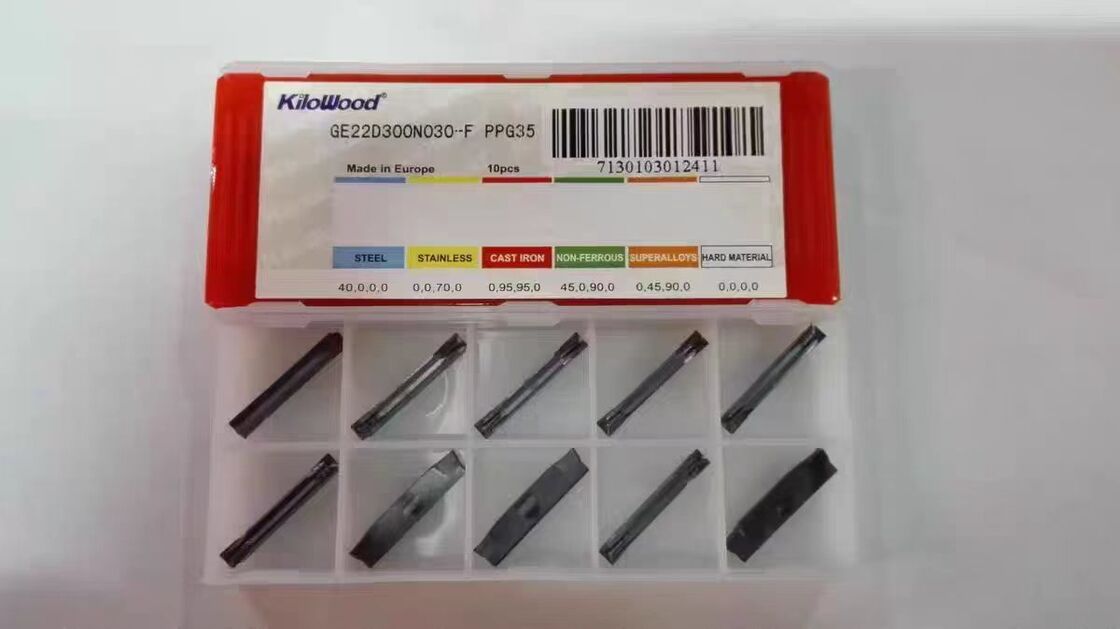

Kilowood GE22D300N030-F PPG35 2.2mm Width Grooving Insert with F-Type Chipbreaker and PVD Coating for CNC Turning

Kilowood GE22D300N030-F PPG35 Grooving Insert for Steel & Stainless Steel

The Kilowood (Chengdu Qianmu) GE22D300N030-F PPG35 is a high‑precision solid carbide grooving and parting insert from Kilowood, designed for medium‑to‑heavy grooving, parting, and undercutting on carbon steel, alloy steel, and stainless steel. It features a 2.2 mm cutting width, 3.0 mm maximum depth, F‑type chipbreaker, and PPG35 PVD‑coated grade, delivering stable cutting, excellent chip control, high wear resistance, and long service life in CNC turning. Ideal for mass production in automotive, hydraulic, and general engineering.

• 2.2 mm Grooving Width (22): Precise width control for standard grooves and parting.
• 3.0 mm Max Depth (D30): Suitable for medium‑depth grooving and parting operations.
• F‑Type Chipbreaker: Optimized for steel/stainless steel, ensures smooth chip flow and anti‑built‑up edge.
• PPG35 Grade: Premium PVD TiAlN coating, high oxidation resistance, excellent wear resistance.
• High‑Density Carbide Substrate: Balanced toughness and hardness, resists chipping in interrupted cuts.
• Precision Ground Cutting Edge: Sharp edge, low cutting force, superior surface finish.
• Compatible with Standard Toolholders: Fits Kilowood and equivalent grooving toolholders.

• Carbon steels (1045, S355, Q235) – primary
• Alloy steels (4140, 42CrMo4, HRC <48)
• Stainless steels (304, 316L, 420) – optimized
• Cast iron (HT200, HT250, light grooving)
• Non‑ferrous metals (brass, copper, light cuts)

• External/internal grooving and recessing
• Parting off and cutoff operations
• Undercutting and profiling
• Medium‑depth grooving in steel and stainless steel
• CNC turning for mass‑production components
• Hydraulic parts, automotive shafts, and fasteners

As a versatile grooving and parting insert for steel and stainless steel, it combines precision width/depth design, F‑type chip control, and PPG35 high‑performance coating for reliable performance and extended tool life. Kilowood’s strict quality control ensures consistent results for mass production.
