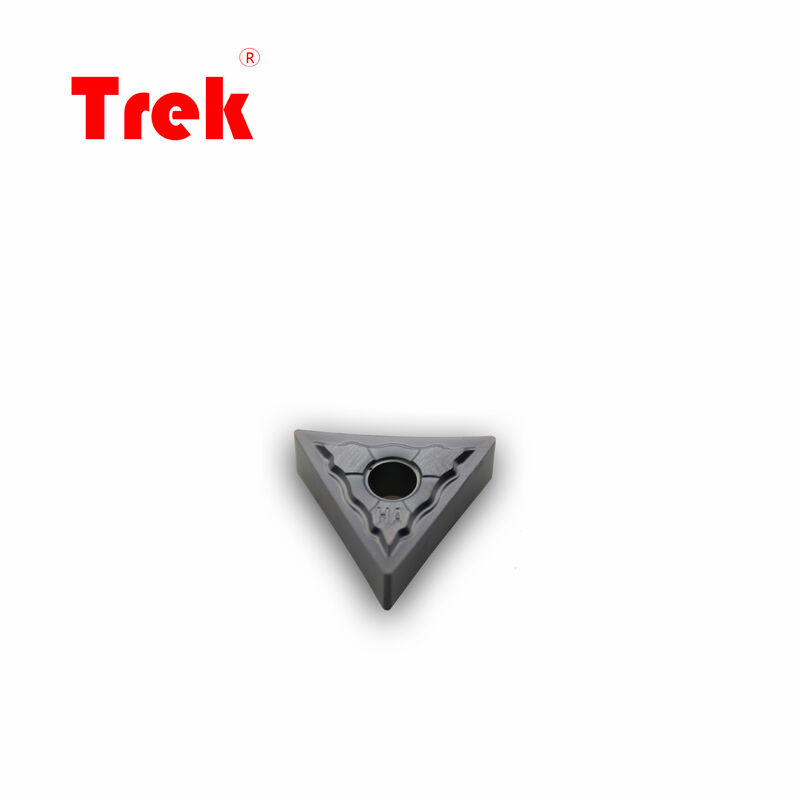

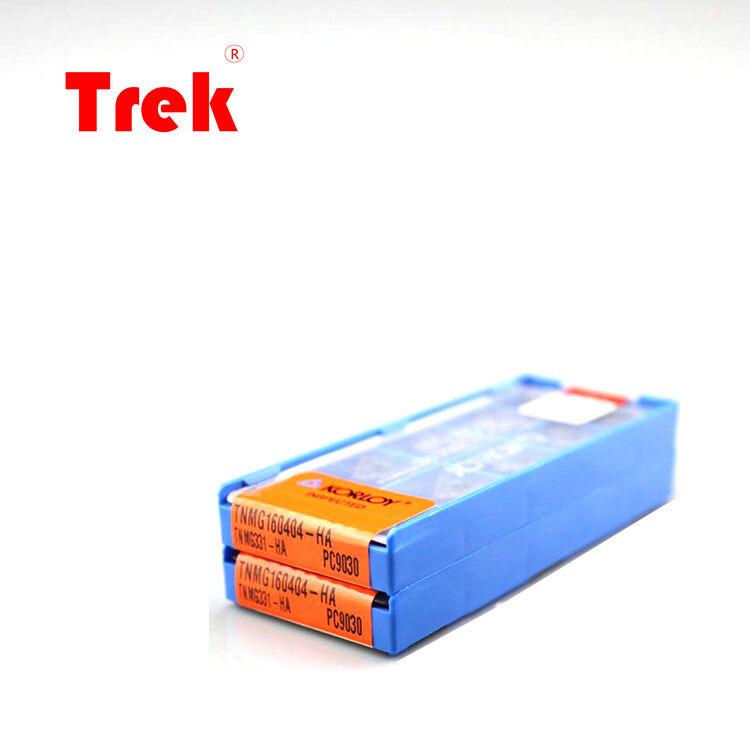

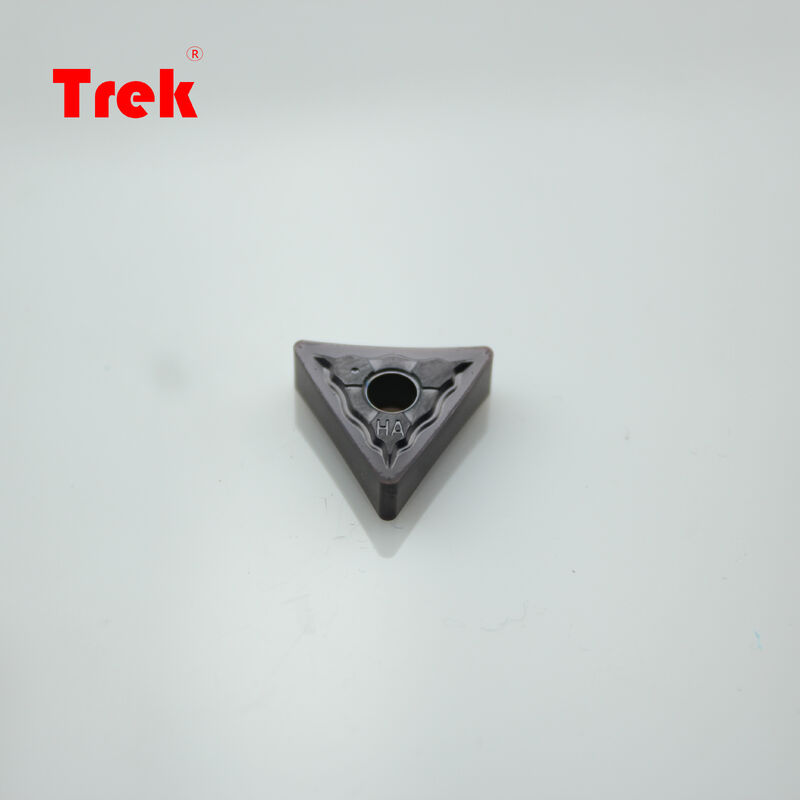

KORLOY TNMG160404HA PC9030 PVD TiAlN Coated 60° Triangular Turning Insert for Stainless Steel Finishing CNC Cutting Tool

KORLOY TNMG160404HA PC9030 60° Triangle Turning Insert

The KORLOY TNMG160404HA PC9030 is a 60° triangular indexable turning insert from KORLOY, engineered for finishing to semi‑finishing turning, boring, and profiling on stainless steel, superalloys, and carbon/alloy steels. It features ultra‑sharp HA chipbreaker, 0.4 mm corner radius, and PC9030 PVD‑coated grade, delivering low cutting force, excellent surface finish, and strong anti‑built‑up edge performance in wet/dry CNC turning. Ideal for precision components in automotive, medical, and general engineering.

• 60° Triangular Shape (TNMG): Negative rake, 3 cutting edges, versatile for external/internal turning.
• Ultra‑Sharp HA Geometry: High positive rake, minimal cutting force, ideal for thin‑wall and long‑overhang parts.
• 0.4 mm Corner Radius (04): Fine finish, reduces stress, suits light depths of cut.
• PC9030 Grade: PVD TiAlN coating, high wear resistance, anti‑chipping, excellent for stainless steel.
• Fine‑Grain Substrate: Balanced toughness and hardness, resists deformation in medium‑low speed cuts.
• Screw‑Clamped: Compatible with standard TNMG toolholders (e.g., MTJNR/L, WTJNR/L).

• Stainless steels (304, 316L, 420) – primary application
• Superalloys (Inconel, Hastelloy, light cuts)
• Carbon steels (1045, S355, finishing)
• Alloy steels (4140, 42CrMo4, HRC <45)
• Cast iron (HT200, semi‑finishing)

• External/internal finishing turning (Ra ≤ 0.8 μm)
• Precision boring and thin‑wall machining
• Profiling and copy turning
• Dry/wet turning of stainless steel
• High‑precision automotive and medical parts

As a sharp‑edge stainless steel finishing insert, it combines 3‑edge economy, HA low‑cutting‑force geometry, and PC9030 high‑performance coating for superior finish and tool life. KORLOY’s precision manufacturing ensures consistent quality for mass production.
