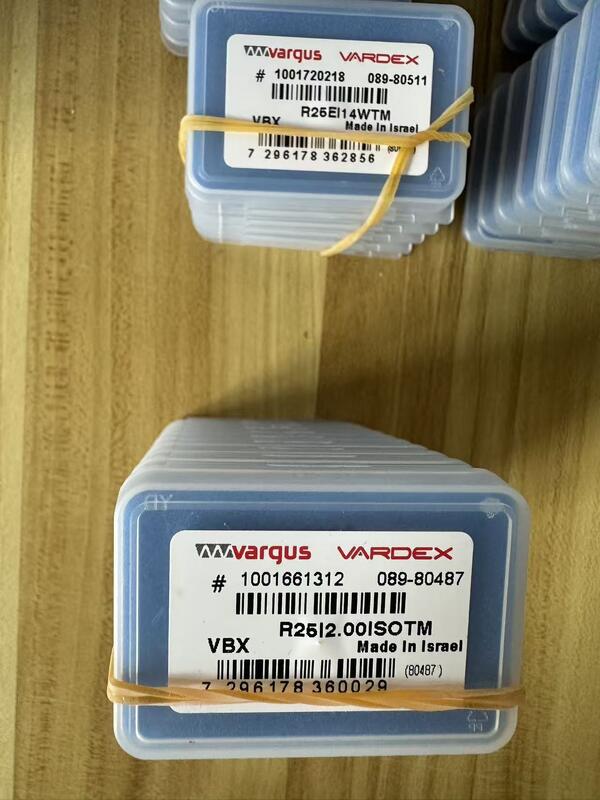

VARGUS R26I2.00ISOTM 26mm Multi-Tooth ISO Internal Thread Milling Insert with 2.0mm Pitch for High Efficiency

The VARGUS R26I2.00ISOTM is an internal, multi-tooth (comb) thread milling insert from Israel’s VARGUS (VARDEX) TM series, optimized for high-efficiency ISO metric internal thread milling on CNC machining centers. Designed for 2.0 mm pitch ISO threads with a 26 mm nominal diameter, it features a precision multi-tooth profile and TM-grade coating, enabling one-pass threading, low vibration, and excellent surface finish in carbon/alloy steels, stainless steels, and cast iron. Ideal for mass production of threaded holes in hydraulic, automotive, and general engineering components.

• Multi-Tooth Comb Design: Multiple cutting teeth for one-pass thread milling, 3–5× faster than single-tooth tools.
• Internal (I) Orientation: Dedicated for internal ISO threads; compatible with VARGUS TM26I tool holders.
• 2.0 mm Pitch ISO Profile: Precision-ground to 60° ISO metric thread standard (2.0 mm pitch).
• 26 mm Nominal Diameter (R26): Matches standard TM26I tooling for rigid clamping and high stability.
• TM Grade Platform: PVD (Ti,Al)N coated grade with high wear resistance and oxidation stability for dry machining.
• Chip-Effective Geometry: Optimized flute design for smooth chip evacuation, reducing tool wear and workpiece scorching.
• High Rigidity: Sintered carbide substrate with high hardness, resists chipping in interrupted cuts.

• Carbon steels (1045, S355, Q235, A105)
• Alloy steels (4140, 42CrMo4, HRC <45)
• Stainless steels (304, 316, 321, 420)
• Cast iron (HT200, HT250, ductile iron)
• Non-ferrous metals (aluminum, brass, light cuts)

• Internal ISO metric thread milling (2.0 mm pitch, 26 mm diameter)
• Threaded hole production (hydraulic components, engine parts, fasteners)
• High-volume production on CNC machining centers
• Continuous or light interrupted thread milling
• Replaces single-point turning for higher efficiency
• Automotive, aerospace, medical, and general engineering parts

As a specialized ISO 2.0 mm pitch internal thread milling insert, it delivers unmatched efficiency with multi-tooth design. The TM-grade coating ensures long tool life in tough materials, while VARGUS’s precision grinding guarantees accurate thread dimensions and superior surface finish. A cost-effective upgrade from single-point turning for high-volume ISO internal threading.
