Brand Name:
TUNGALOY
Model Number:
WNMG080408TM T9225

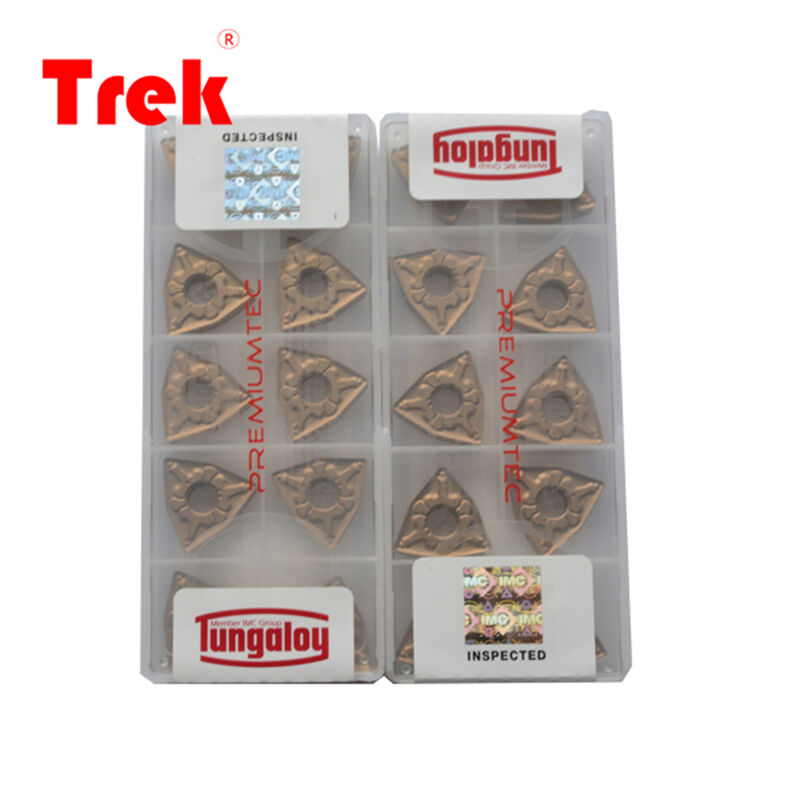

CNMG120408 HMM AH905 Tungaloy Solid Carbide Insert 12.7mm IC for Aerospace Inconel CNC Turning
![]()
The TUNGALOY WNMG080408TM T9225 is a high-performance 80° trigon (W-type) solid carbide turning insert, optimized for medium to rough turning of carbon steels, alloy steels, and stainless steels Tungaloy. Featuring Tungaloy’s advanced T9225 CVD coating grade and versatile TM chipbreaker, it delivers exceptional wear resistance, fracture toughness, and stable chip control in both continuous and moderate interrupted cuts. Ideal for automotive, general engineering, and heavy machinery components, it ensures long tool life and consistent productivity in steel machining.
| Item | Parameter |
|---|---|
| Model | TUNGALOY WNMG080408TM T9225 |
| Product Type | Solid Carbide Turning Insert |
| Shape | 80° Trigon (W-type) |
| Inscribed Circle (IC) | 12.7 mm (1/2") |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm |
| Chipbreaker | TM (Medium Cutting for Steel) Tungaloy |
| Grade | T9225 (CVD TiCN+Al₂O₃+TiN Coating) webshop.tungaloy.cn |
| Relief Angle | Negative (0°) |
| Tolerance Class | M (Medium) |
| Mounting | Through-hole (Double-sided) |
| Coating Color | Dark Gold/Bronze |
| ISO Application Range | P15–P25 (Steel) Tungaloy |
As Tungaloy’s first choice for medium-to-rough steel turning, the T9225 grade with TM chipbreaker outperforms conventional inserts in tool life (up to 1.8x longer), wear resistance, and chip control Tungaloy. The thick, uniform Al₂O₃ coating resists high-temperature wear, while the PremiumTec surface reduces friction and built-up edge. It minimizes downtime for tool changes and chip removal, making it the cost-effective solution for high-productivity steel machining in demanding industries.
