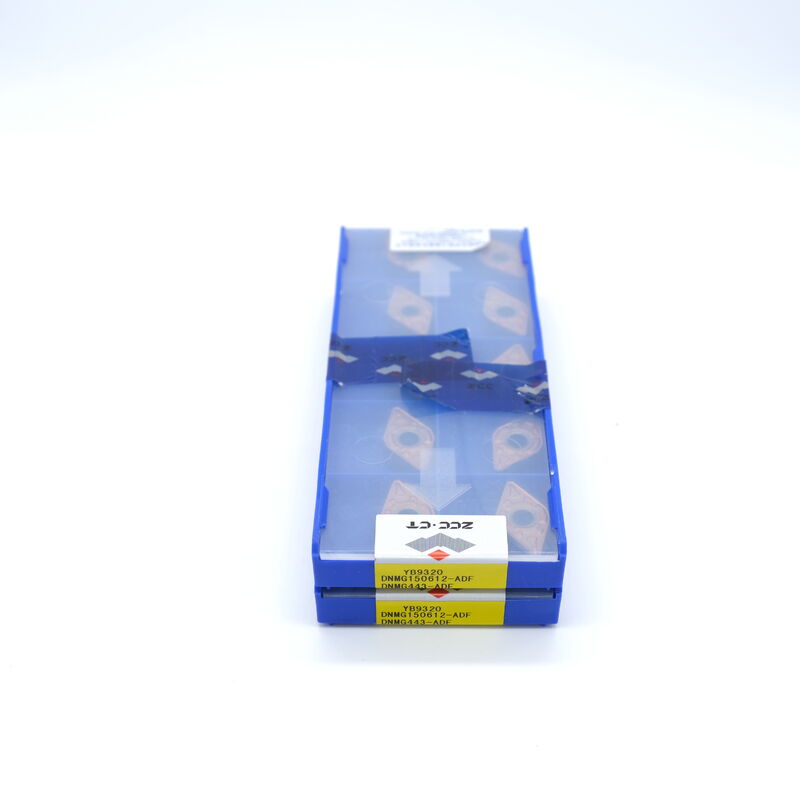

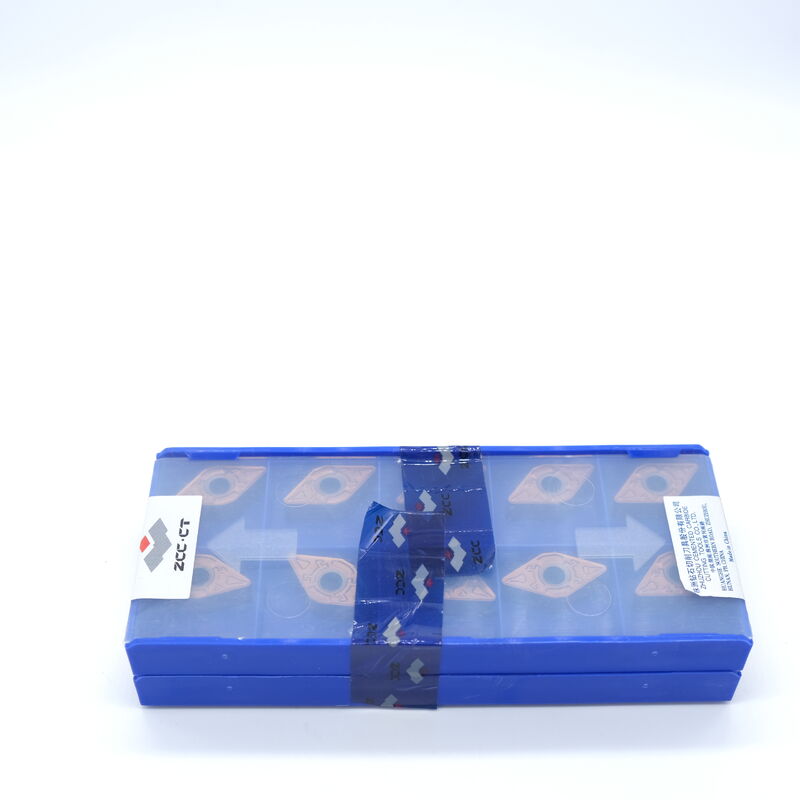

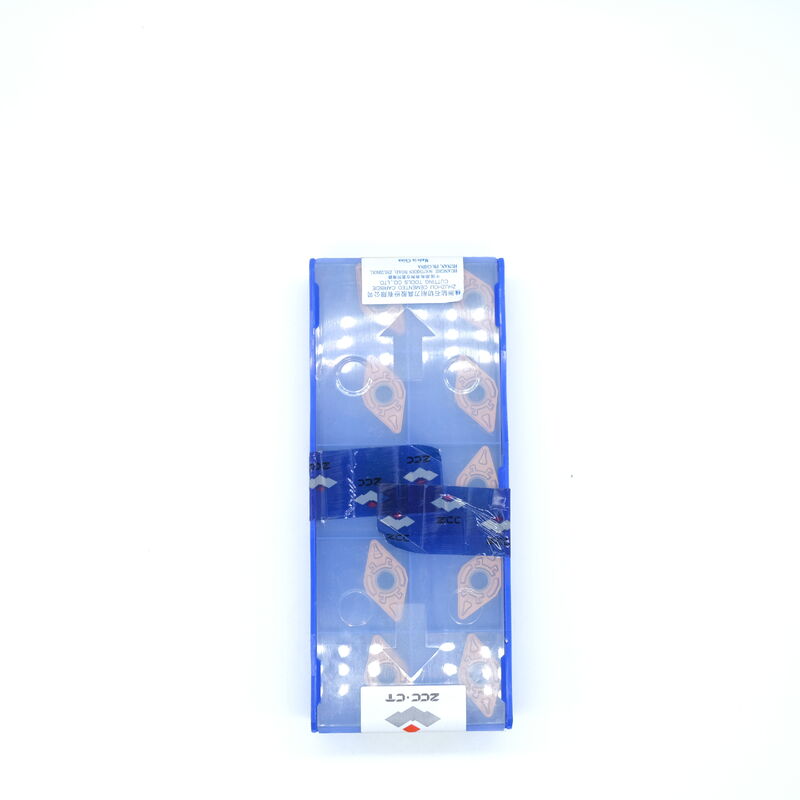

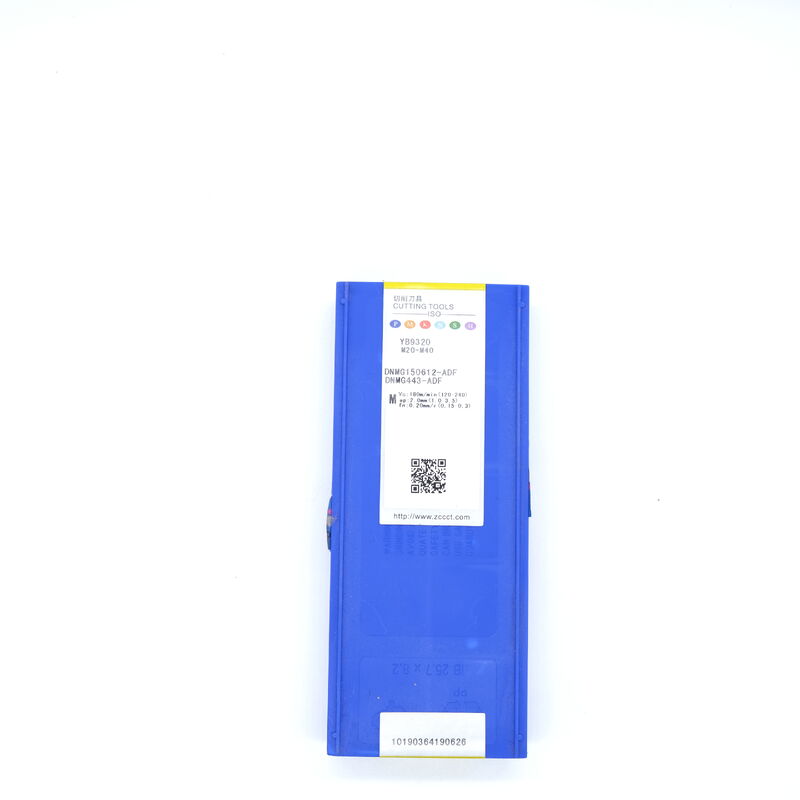

ZCCCT DNMG150612ADF YB9320 Nano PVD Coated 55° Diamond Carbide Insert for Titanium Alloy CNC Turning

The ZCCCT DNMG150612ADF YB9320 is a high-performance 55° diamond (rhombic) negative rake carbide turning insert from ZCC Cutting Tools (ZCCCT, Zhuzhou Diamond) – China’s leading manufacturer of precision indexable cutting tools. Designed for semi-finishing to light roughing of stainless steels, titanium alloys, and heat-resistant alloys, it features an ADF chipbreaker and premium YB9320 nano PVD coating for superior wear resistance, edge toughness, and chip control in difficult-to-machine materials.

• Model: DNMG150612ADF YB9320
• Brand: ZCCCT (Zhuzhou Diamond Cutting Tools, China)
• Geometry: DNMG = 55° diamond, 0° rake angle, M tolerance, with mounting hole
• Dimensions: 15 = IC 12.7 mm; 06 = thickness 6.35 mm; 12 = corner radius 1.2 mm
• Chipbreaker: ADF – optimized for stainless steel/HRAs, low cutting force, excellent chip evacuation
• Grade: YB9320 – nano-structured nc-TiAlN PVD coated ultrafine carbide, high-temperature stability
• Coating: Advanced nc-TiAlN nano PVD coating, exceptional heat & abrasion resistance
• Edges: 4 usable corners; robust substrate resists chipping in interrupted cuts

• Stainless steels (M10–M30, 304/316/420) – primary
• Titanium alloys (Ti-6Al-4V)
• Heat-resistant alloys (S05–S20, Inconel 718)
• Alloy steels (4140, 42CrMo4, HRC < 50)
• Duplex stainless steels

• External turning & facing (semi-finish/light roughing)
• Boring & profiling (continuous/interrupted cuts)
• General-purpose CNC turning (mass production & job shops)
• Dry or wet machining (excellent thermal stability)
• High-feed turning of hard-to-machine materials

表格

Combines a specialized ADF chipbreaker with ZCCCT’s advanced YB9320 nano PVD grade. Delivers long tool life, superior surface finish, and reliable performance in stainless steel and heat-resistant alloy turning. Ideal for shops seeking cost-effective, high-quality inserts for difficult-to-machine materials.
